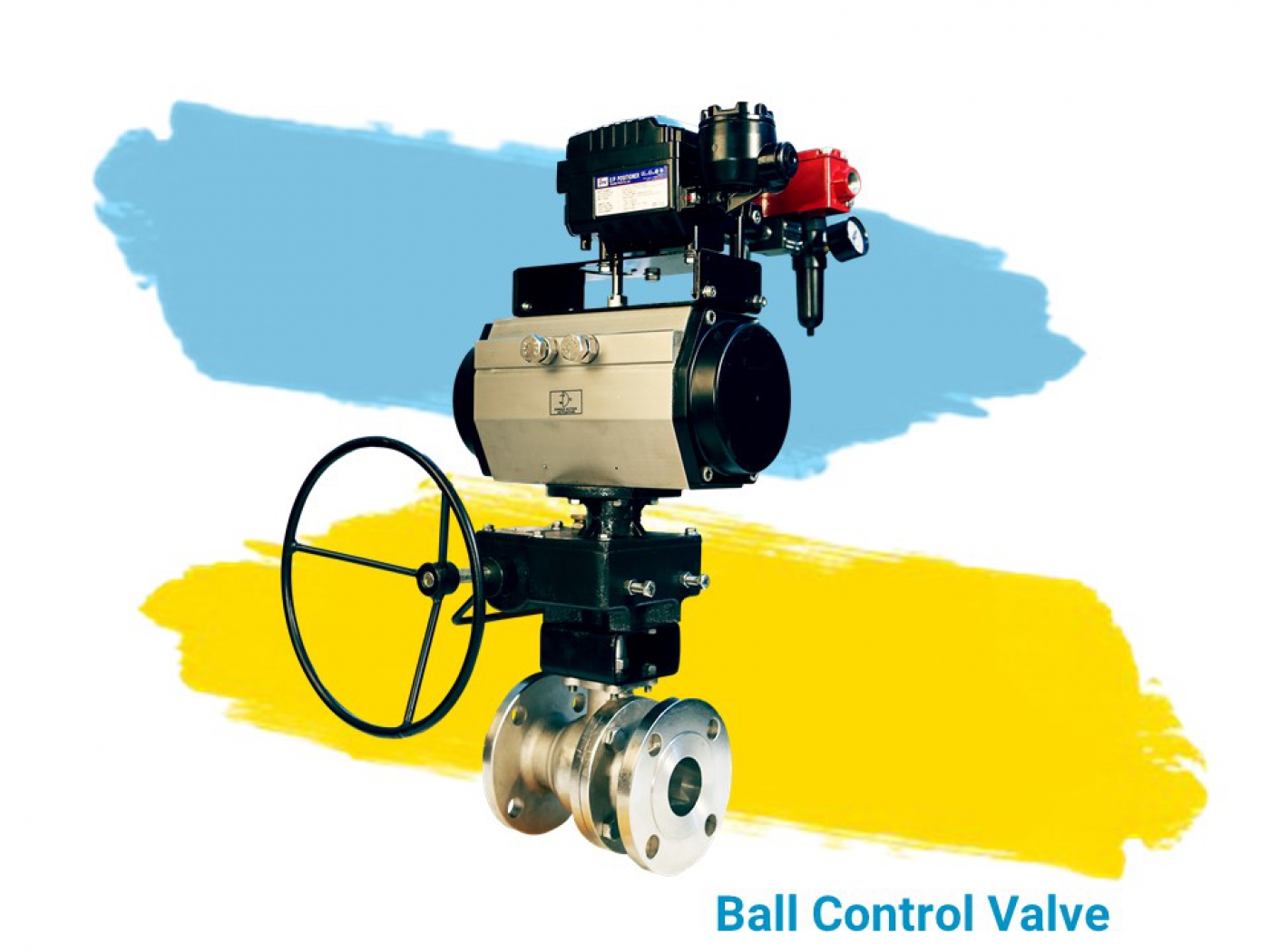

UNICON 4000 – BALL CONTROL VALVE
- UNICON 4000 Series Ball Valves are reliable, easy to operate designed for ON-OFF and throttling applications.
- The selection is based on pressure, temperature and process medium such as oil, water, gas and corrosive chemicals.
- Application
- Caustic chlorine plants
- Chemical and petrochemical industry
- Dyes and pigments
- Hazardous fluids, Acids & alkalis
- Pesticides
- Edible oil plant
- Pharmaceuticals
- Solvents & Paint industry
- Full bore offers high Cv value equal to the line size.
- Excellent tightness over an extensive range of temperature and pressure.
- Precision machined ball and seat for bubble tight shut-off.
- The self-adjusting packing is maintenance free and helps provide a leak-free stem seal.
- Specific anti blow-out shaft design which cannot be affected by the media according to API 609.
- Direct mounting according to ISO 5211.
- Conforming to ANSI, API & NACE specifications qualify these valves for virtually all oil & gas services.
- Size Range : ½” to 12”
- Body Rating : ASME B16.5, 150# Class & 300# Class
- End Connections : Flanged RF, Screwed (Up to NPS 2”), BW, SW
- Body Material : WCB, CF8, CF8M, CF3, CF3M (other materials on request)Leakage Class : Class VI (soft seated)
- Flow Characteristics : ON-OFF, Throttling
- Temperature Range : -30°C to 200°C
- Pneumatic Diaphragm Actuators
- Pneumatic Rack and Pinion Actuators
- Scotch Yoke Actuators
- Electrical Actuators
- Pneumatic valve positioner
- Electro - Pneumatic valve positioner
- Air filter regulator
- Solenoid valve
- Limit switches
- Side mounted Hand-Wheel
- Other accessories available on request
