Gas powered nailer for steel and concrete

Features and benefits

  • Pin range from 15mm to 38mm provides wide range of application
  • Simplified depth adjustment design provides the end user with easy but accurate depth of drive control
  • Removable magnetic nose tip for attaching metal clips and ceiling hangers. User can safely and comfortably perform in all overhead applications
  • Compact and ergonomic design allows the operator to achieve great accessibility and freedom of operation
  • Rear loading lightweight plastic magazine with a capacity of 30 pins provides durability and acessibility
  • Sequential firing mode for operators safety and fixing precision
  • Low weight provides end user with high level of comfort and working experience
  • Quick release mechanism provides easy acces to the magazine for removing obstructions and performing routine maintenance
  • Lithium technology alongside with energy saving features ensures high capacity and performance of the system
  • Embedding power of 85 J enables work in steel (15 - 19 mm nails) and concrete (17 - 38 mm nails)
  • The charge status indicator allows you to optimally schedule work time

Applications

  • Cable conduits and wires installation
  • Applicable for fixing steel and aluminium profiles in drywall structures
  • Installation of all types of M&E clips and clamps
  • Securing wire mesh as plaster reinforcement using special thrust washer

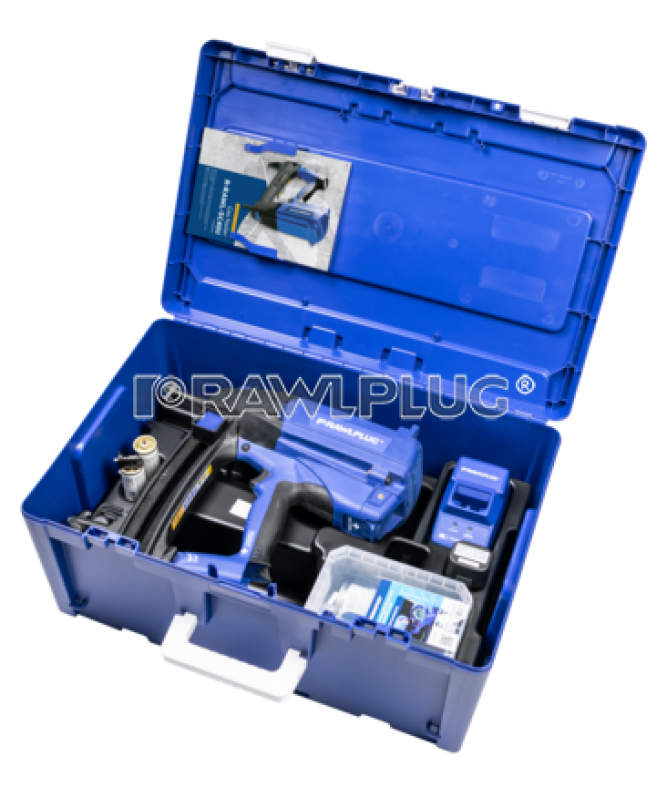

Equipment

  • R-SC40II Gs powered nailer
  • 1 battery
  • Charger base
  • Operating and Safety manual
  • Safety glasses and ear plugs

Product information

Index

Fastener length range

Substrate

Shots per charge

Fastener type

Dimensions

WEIGHT

Fuel cell type

Magazine capacity

Battery charge

Noise level

Box weight

Outer weight

EAN

[mm]

[mm]

[kg]

[nail]

[h]

[dB]

kg

kg

R-SC40II-XL1

15 - 38

Concrete C20/25 - C50/60

8000

Round head pin

395x355x120

3.5

GP5

30

0.5

92

9.40

9.40

5906675492414
