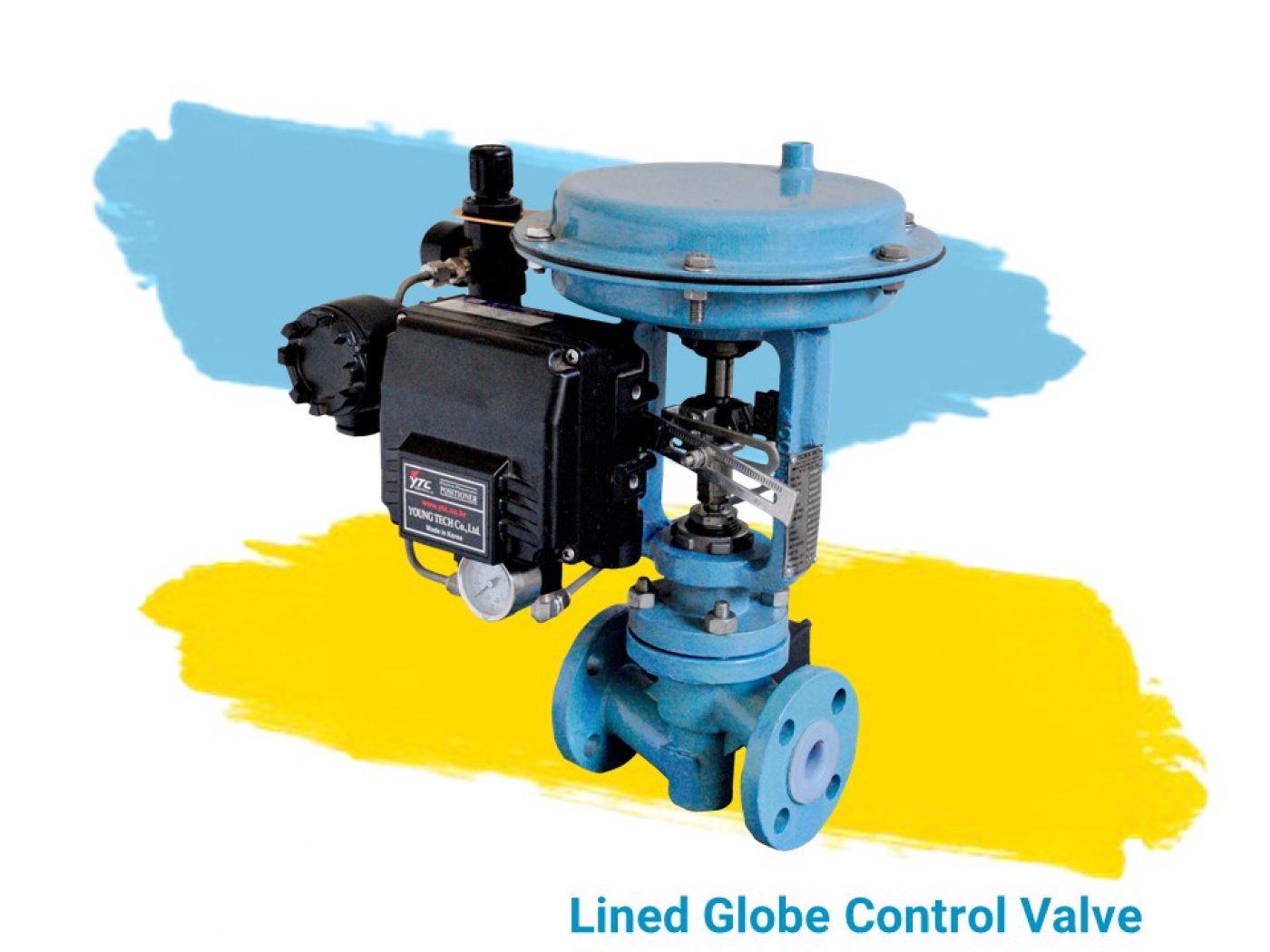

UNICON 1000L LINED GLOBE VALVE
- UNICON 1000L is 2-Way Globe PFA (Perfluoro Alkoxy) Lined Valve with PTFE bellow seal. These are suitable for corrosive liquids, acids and extensively used in caustic / chlorine plants. The outer metallic body is available in both Carbon Steel (A216 WCB) as well as Stainless Steel (A351 CF8/8M).
- Its body inner surface is lined with special lining material (PFA) which is suitable for most of the corrosive chemicals working at different temperature and pressures.
- Application
- Hazardous and Corrosive Liquids, Acids, Vapours & Gases.
- Chemical, Pharmaceutical, Paint & Processing Industry.
- PFA lining of 3 to 4 mm thickness ensures a high degree of protection
- T-Grooves provide a positive mechanical connection between the liner material & valve body
- Unique bellow design, allows working pressure up to 15 kg/cm2
- High flow capacity to line size ratio
- Long service life and operational reliability
- Backup packing provides additional safety
- Size Range : 1" - 6“
- Pressure Ratings : 150# Class
- End Connections : Flanged RF
- Body Material : CS or SS With PFA Lining
- Trim material of construction : PTFE, CPTFE, GPTFE , Hastelloy C
- Trim Characteristics : EQ% & Linear
- Leakage Class : Class VI As Per FCI 70-2
- Pneumatic Diaphragm Actuators
- Pneumatic Piston Actuators
- Electric Actuators
- Pneumatic / Electro - Pneumatic / Smart E/P – Positioners
- Electro Pneumatic Valve Positioner
- Air Filter Regulator
- Solenoid Valve
- Limit Switch
- Proximity Switch
- Manual Override
