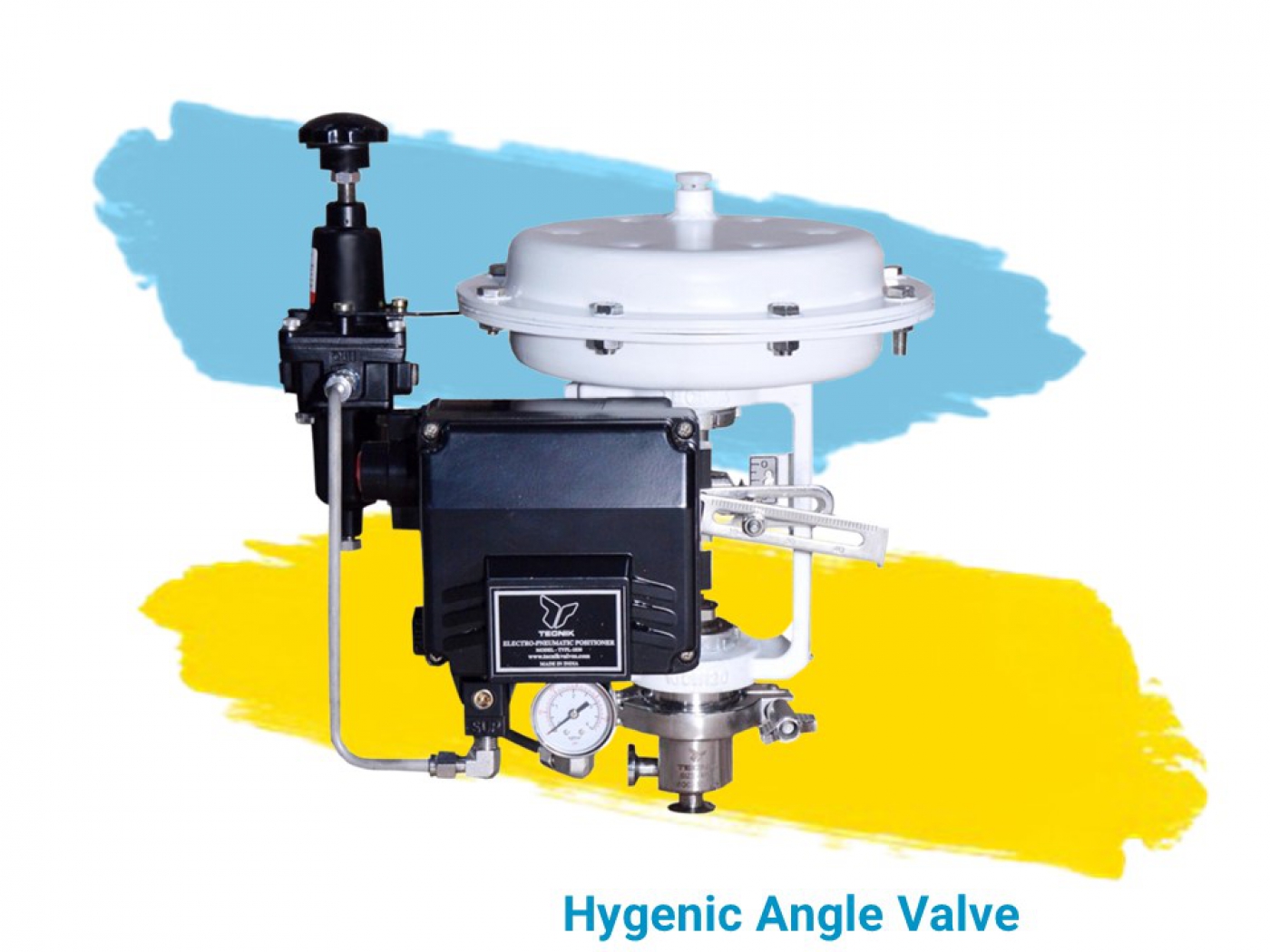

UNICON 2400 SERIES – HYGIENIC ANGLED VALVE
- The UNICON 2400 Hygienic Control Valves are single seated, two-way body constructed with angle connections.
- The T-36 pneumatic actuator is rubber diaphragm and multi-string. It’s action can be Direct Action (air to close) or (air to open). The UNICON 2400 valves are designed to assure an accurate control in any process condition.
- The self - draining design is suitable to applications in clean service.
- Application
- Food & dairy industries
- Sugar, Syrup, Milk, Lotions and other clean applications
- Compatible for clean applications.
- Made from solid bar stock material
- Single seated, Two-way Type
- Direct or Reverse action valve
- Easy In-line Maintenance
- Metal to metal or soft sealing trim
- No-holdup, Fully drainable
- Internal wetted parts: ≤ 0.5 micron Ra
- External: Light Polish
- Valve sizes : 1”, 1.25”, 1.5” & 2”
- Max. Air supply : 4 Bar
- Pneumatic actuator : T‐36, T‐60
- Actuator connection : ¼ ” NPT
- Temperature : ‐20° to 70°C
- Valve port : Full port as standard
- Characteristic : Equal%, Linear & ON‐OFF
- Electro Pneumatic Positioners
- Smart (FF/HART/ASIBUS) positioners
- Position Indicator Switches
- Air Regulator Unit
- Solenoid Valve

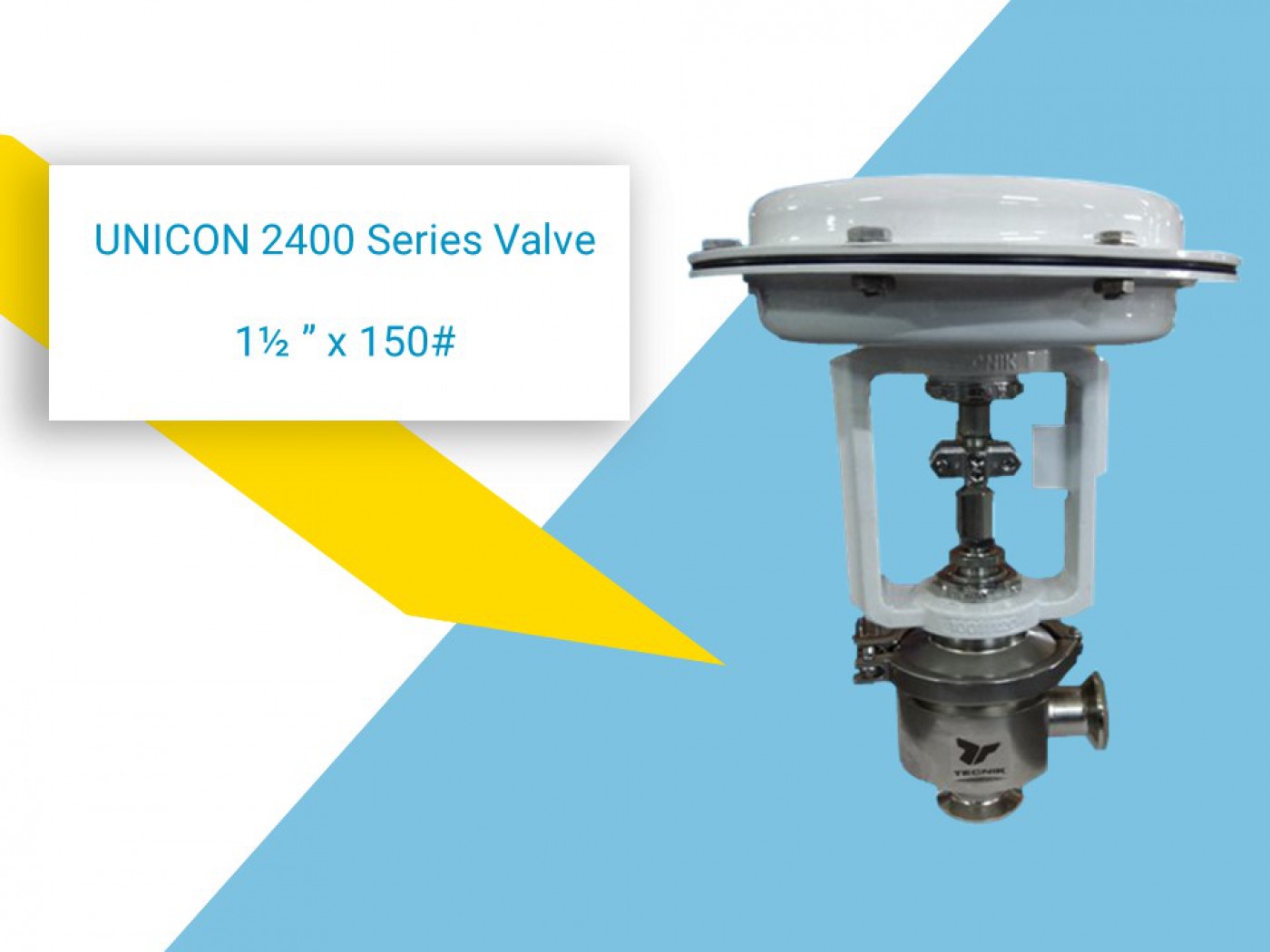

UNICON 2400 Series
- UNICON 2400
- Hygienic Angled Valve
- Size : 1 ½” x 150#
- Customer : Volfram Systems
