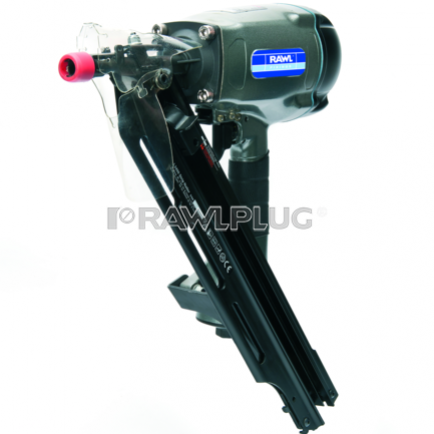

R-RAWL-PN-3490 Pneumatic framing nailer

Features and benefits

  • Adjustable exhaust port is an improtant safety feature when operating in areas where other persons amy be affected by the exhausted air and particles
  • Depth of drive adjustment provides fine tuning installation depth in an type of substrate material and application
  • Removable no mark nose for protecting the timber surface. Especially important when securing timber cladding or facades
  • More powerfull than gas powered equivalent of the same specification. Up to 10% more power ensures outstanding performance in all applications and timber types
  • Magazine capacity 88 nails for reducing the frequency for reloading thus increasing performance and speed of operation
  • Simplicity of tool design ensures low maintenance and high reliability

Applications

  • Timber frame stud work in timber framing industry
  • Installation of battens and sheating in roof construction
  • Installation of wooden facades
  • Installation of timber flooring and terraces
  • Manufacturing of timber standarised structure like Timber frame houses or roof elements

Equipment

  • R-RAWL-PN-3490 Pneumatic framing nailer
  • Spare gasket set
  • Operating and Safety manual
  • Safety glasses and ear plugs
  • Case

Product information

Index

Power source

Magazine type

Magazine capacity

Magazine angle

WEIGHT

Fastener diameter range

Fastener length range

Noise level

Maximum pressure

Operating pressure

Fastener type

Dimensions

Box weight

Outer weight

EAN

[nail]

[degree]

[kg]

[mm]

[mm]

[dB]

[bar]

[bar]

[mm]

kg

kg

R-RAWL-PN-3490

Pneumatic

Strip

88

34

3.8

2.8 - 4.1

50 - 90

94

8

5-7

D head nail

420x125x370

7.19

14.37

5906675252049
