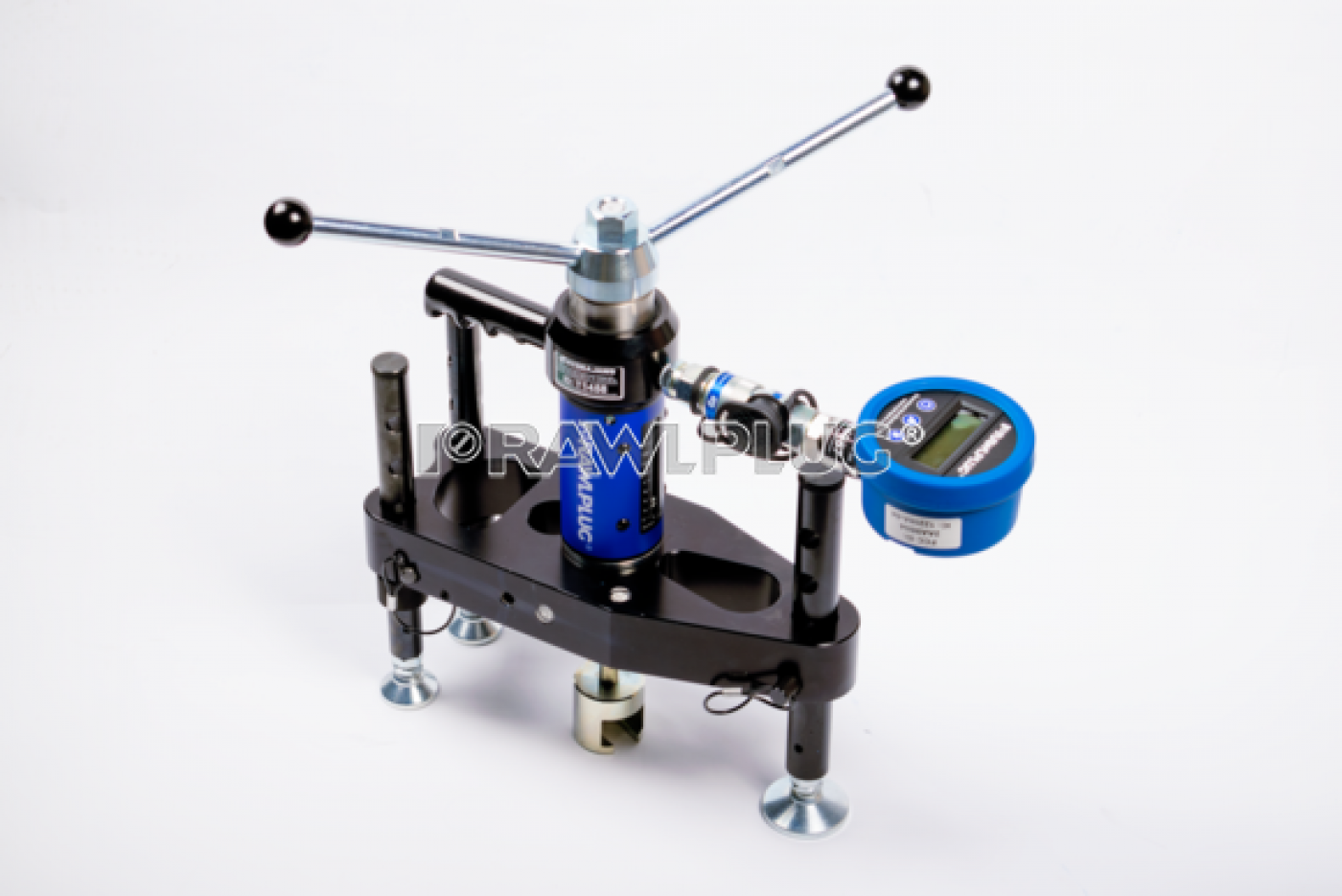

- The pull-out tester is a purpose made system for testing fixings, fasteners and anchors
- The sturdy and stable adjustable design guarantees correct installation and measurement.
- A high-precision digital pressure gauge ensures high measurement accuracy and a clear reading of the results.
- The pressure gauge has a quick-release male connector to facilitate quick removal and installation on the unit.
- The large number of accessories and adapters included in the kit allows a wide range of applications with different mounts.
- Each tester comes with a calibration certificate to guarantee correct measurement.
- Tester R-TK-D2050-050, 50kN digital pressure gauge.
- Adapters and additional accessories.
- RAWLCASE case.
- Calibration certificate.
- User manual.
- Oil bottle with female quick-release coupling.
- Force spreading bridge with telescopic legs secured by M4 x 40 mm screws.
- M12 locking adapter (located in the tester jaw).
- Slot connection adapters (hardened - 4.5, 5.5, 6.5, 8.5, 10.5, 12.5).
- Threaded adapters (hardened - M10, M12).
- M12 Bolt Test adapter with 135mm thread.
- M12 23mm adapter for Clevis ring bolt with 120mm thread.
- Threaded stem adapters M16, M20, M24 long.
- 3.0 mm ball spanner.
- Open ratchet spanner 24 mm.
- 2.5 mm Allen spanner.
- 2 x Spare M4 x 40mm bridge screws.
- Allen spanner 2mm short.
- 10 mm spanner.
- Safety eye bolt M10 x 20.
- Digital meter user manual.
- Spare 9V battery (located underneath the instrument).
- The pull-out tester is a purpose made system for testing fixings, fasteners and anchors
- For use on both horizontal and vertical surfaces.
